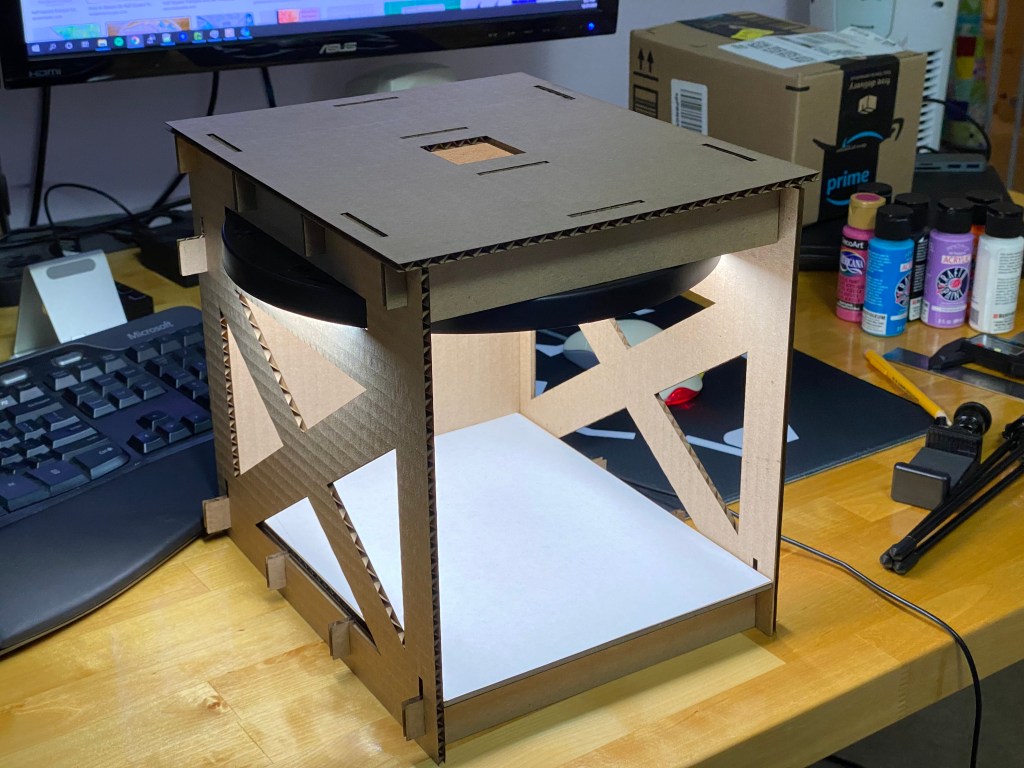

Made of laser cut sheet stock using tab and slot construction. No glue required, gravity and friction keep slots secure. Hole on top for phone to sit on and take picture through.
Inside Width 200mm (7.8in)
Inside Depth 253mm (9.9in)
Inside Height 170mm (6.6in)
Outside Width 227mm (8.9in)
Outside Depth 270mm (10.6in)
Outside Height 254mm (10.0in)
Sample Picture:
Materials Used:

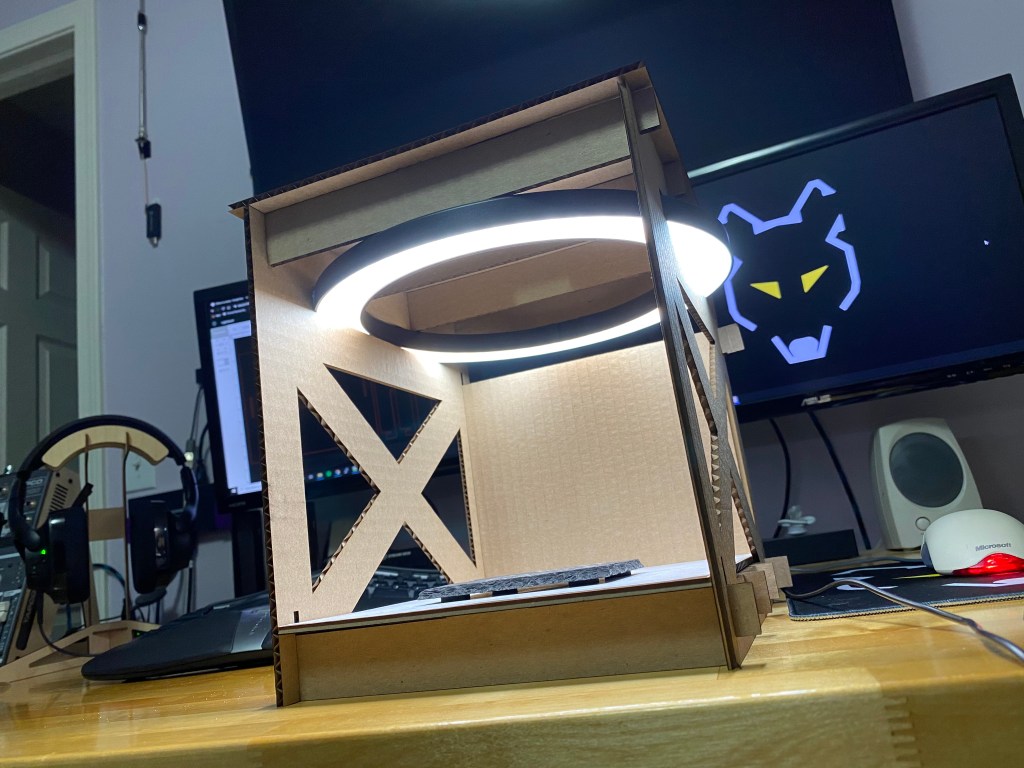

Light source is LED Ring Light 10″

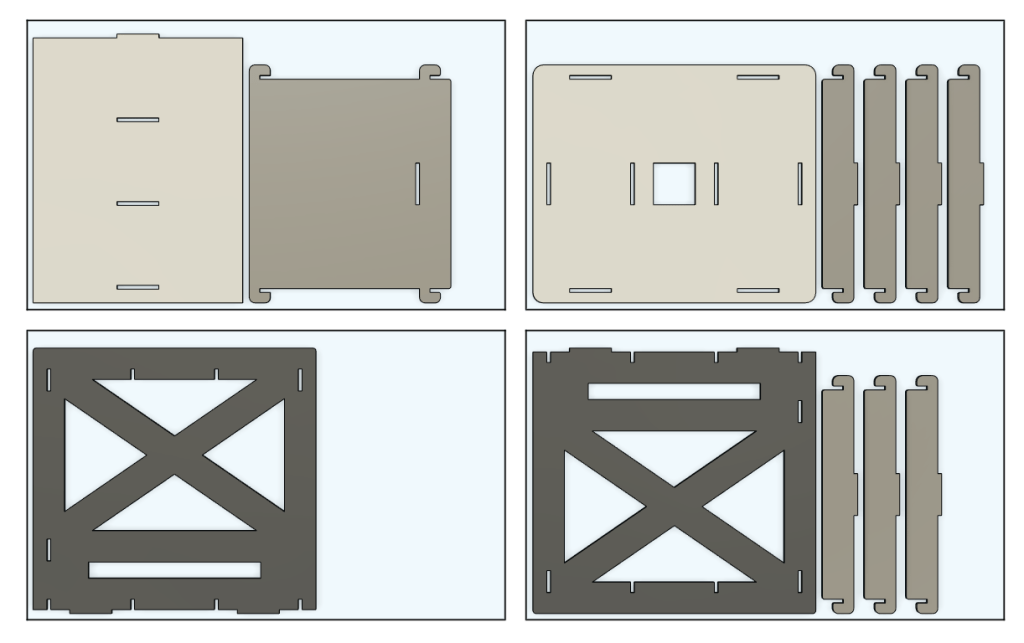

4 12×19 Glowforge-ready sheets of material
- Original in pictures is built from cardboard sheets – Partners Brand Corrugated Sheets, (007) 20 x 12″
- Also include export for 3mm Baltic birch (untested)
- Also include export for Proofgrade Draftboard (untested)
Download Files:
More Lasers Designs:
If you like this design you might be interested in some of my other laser posts
