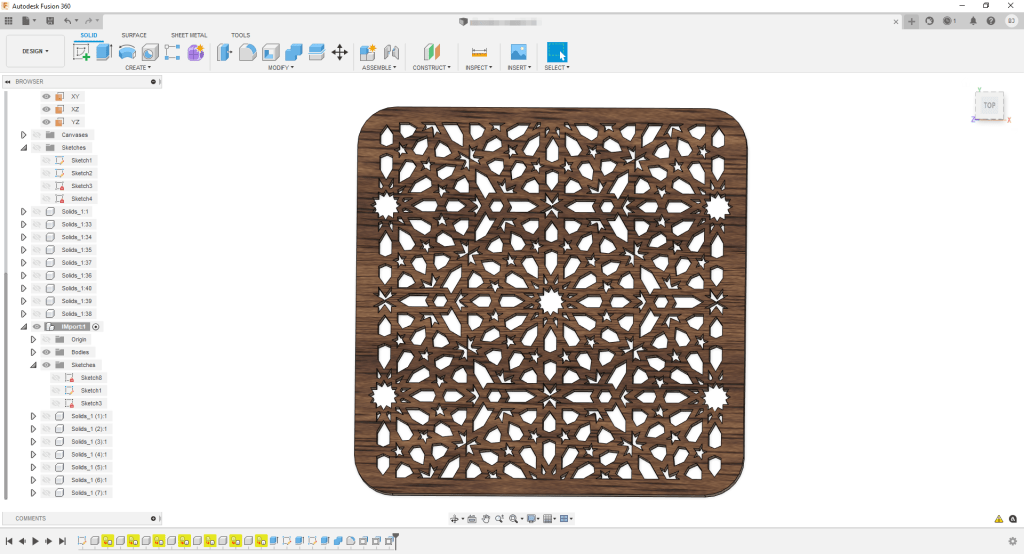

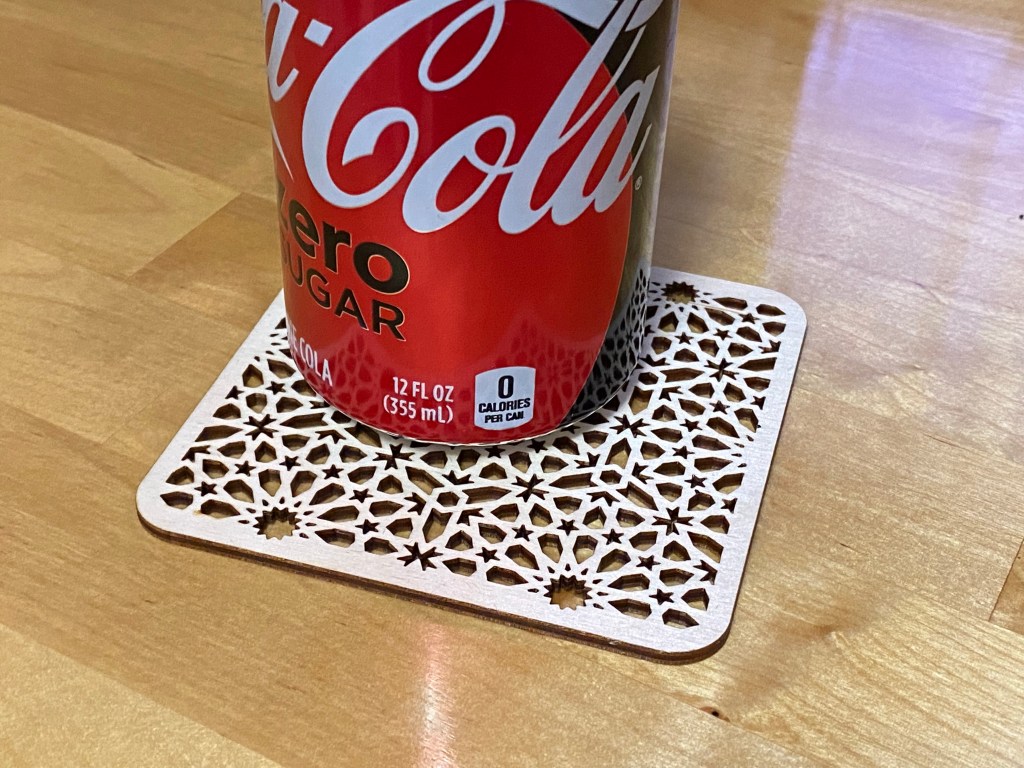

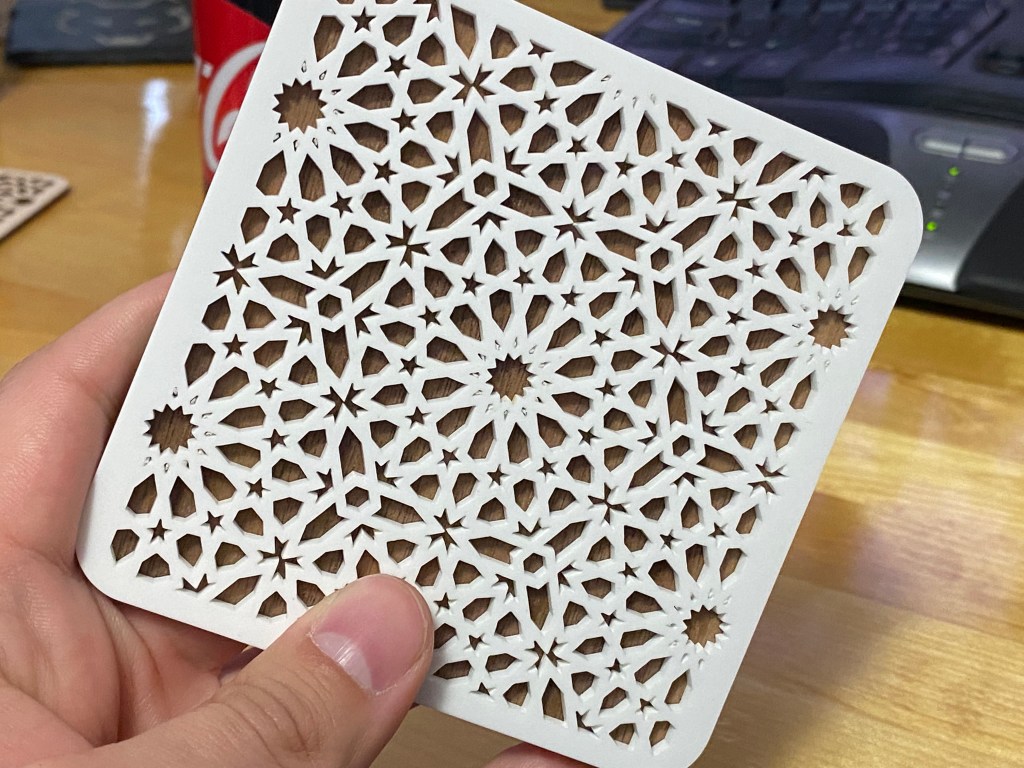

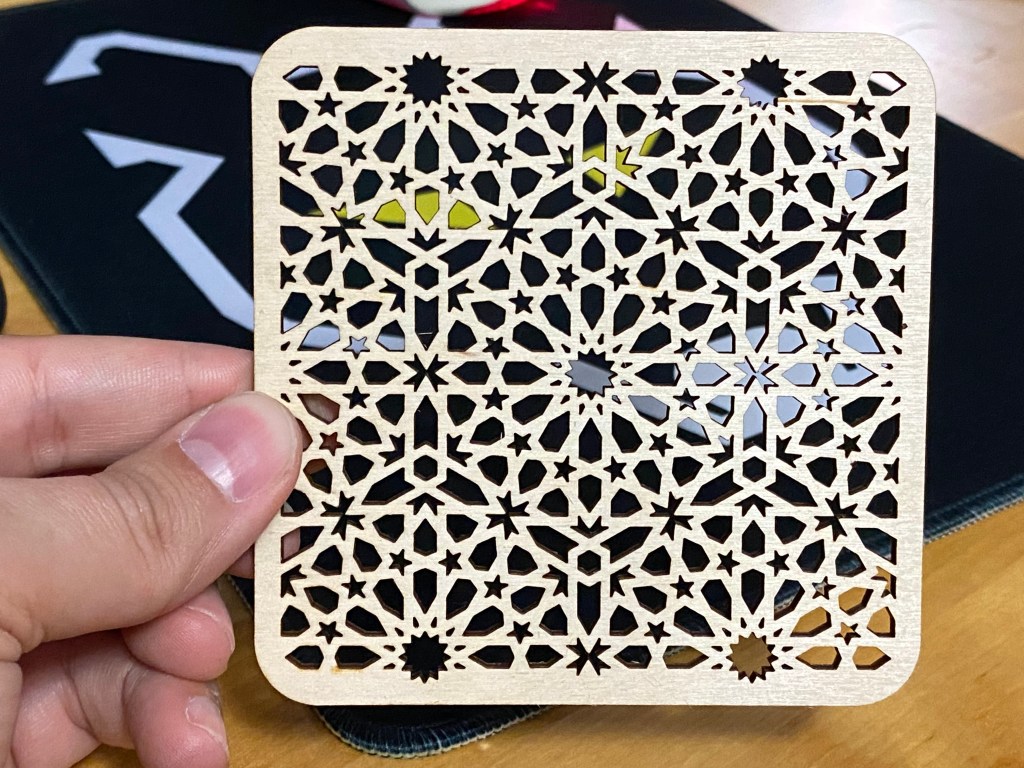

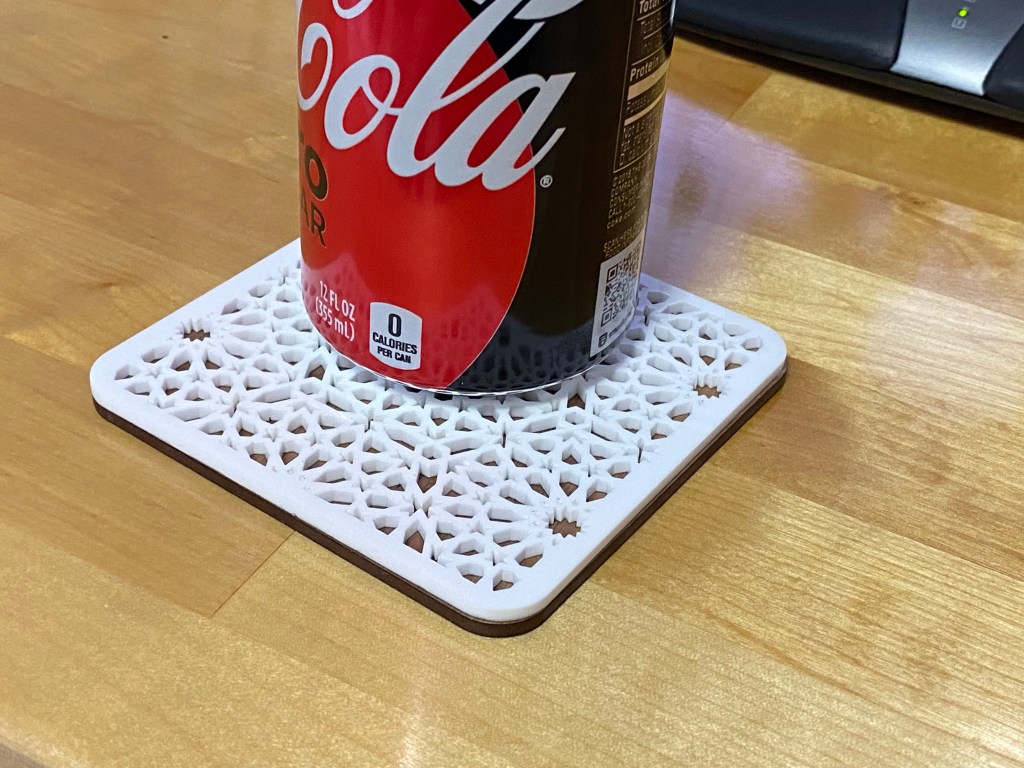

Inspired by a window in the Court of the Lions at Alhambra in Granada, Spain. Designed in Fusion 360, cut from 3mm baltic birch, 1/8in white cast acrylic, or Glowforge Proofgrade Walnut.
Outside dimensions: 4 inches by 4 inches

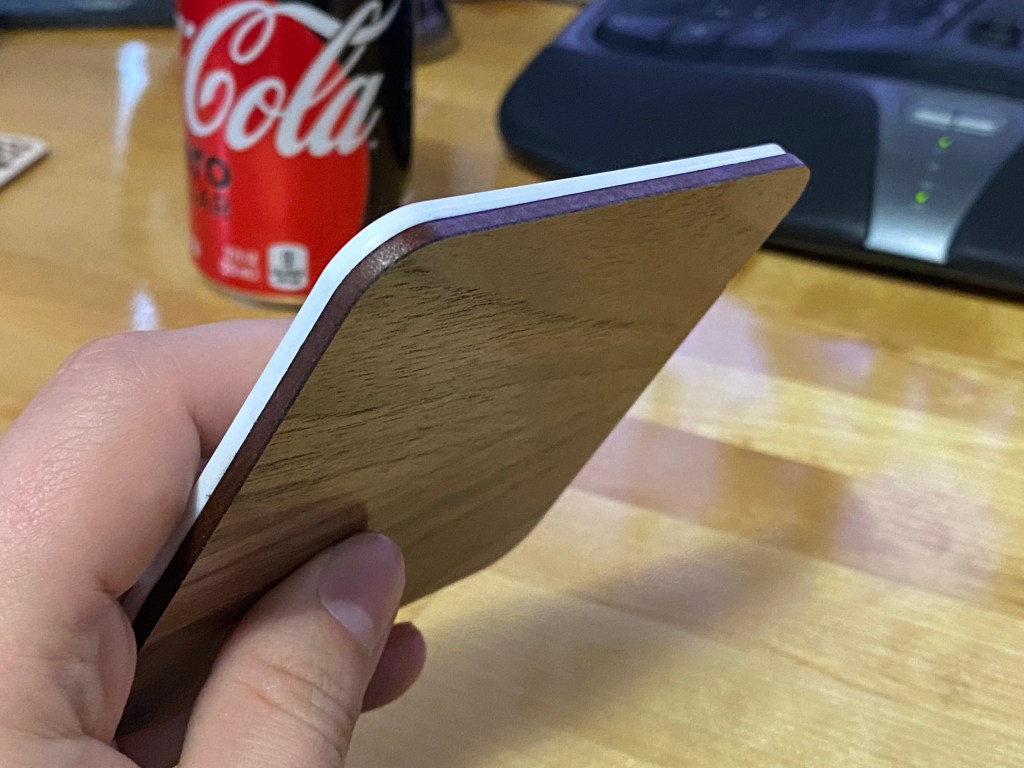

Can be cut as single layer or 2 layers. To cut backer, ignore the inside cuts.
Materials Used:
- 3 mm x 12 x 20 Inch Baltic Birch Plywood, Box of 50 B/BB Grade by Woodpeckers
- 1/8″ Paper Masked Cast Acrylic Sheet (12″x19″)
- 3M Adhesive Sheet – 8132LE (~2 mil thick, 300LSE)
- Proofgrade Medium Walnut
Download Files:
