Toner Transfer on the Cheap

I recently made my first PCB with toner transfer using an iron. It was pretty ugly.

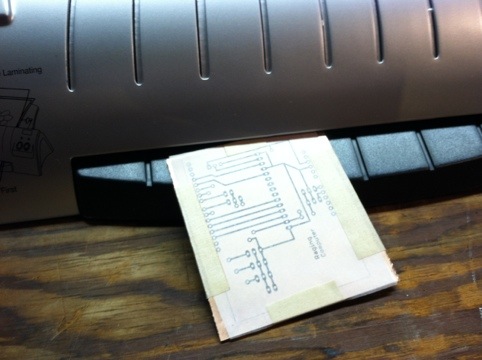

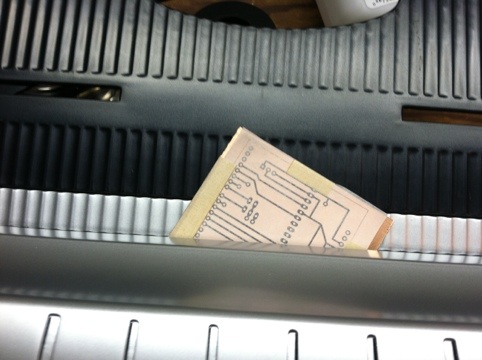

I bought a cheap-o laminator from walmart for $25 + tax. It’s a Scotch TL901. I used masking tape to hold things in place. It worked well enough that I’m not going to complain.

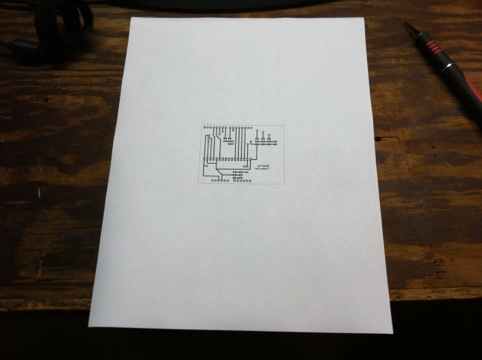

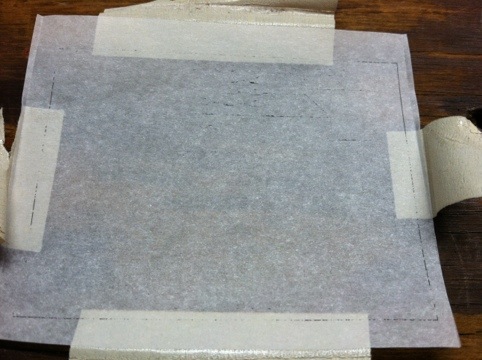

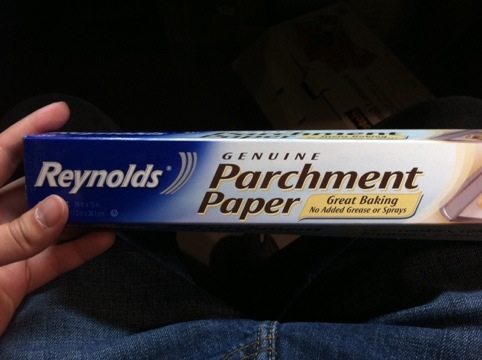

I never realized what a difference a laminator makes! It’s hard to mess up now. I also tried using parchment paper.

http://hackaday.com/2012/04/30/etching-your-own-boards-really-really-fast/

http://www.instructables.com/id/Toner-transfer-no-soak-high-quality-double-sided/

The results are so much better with parchment paper and a laminator than proper transfer paper and an iron. At the end I have a pic of transfer using transfer paper. The edges are a lot more crisp, but it costs quite a bit more.

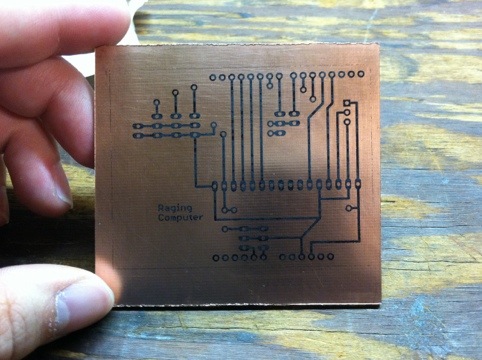

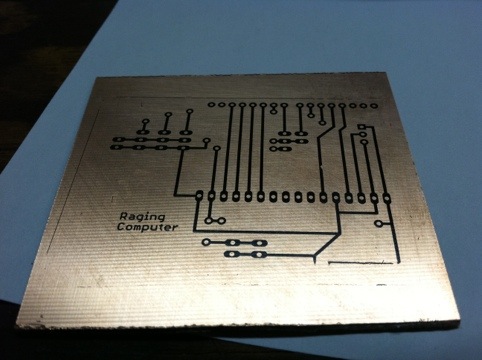

Toner transfer with parchment paper

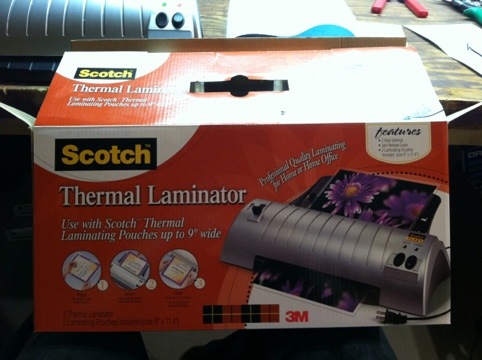

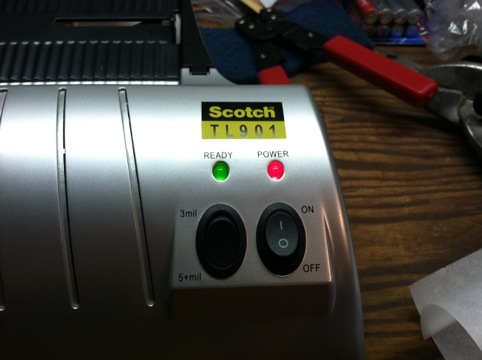

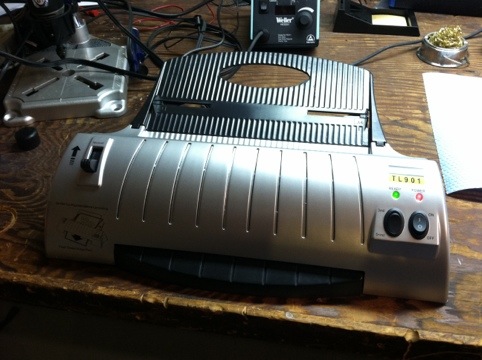

Scotch TL901 Thermal Laminator

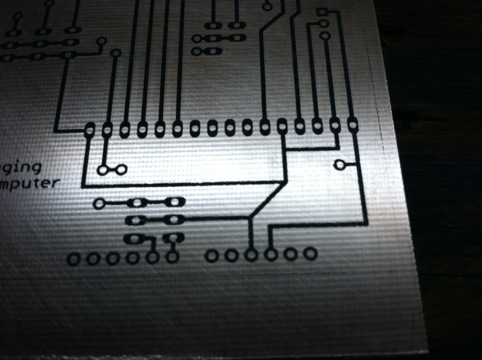

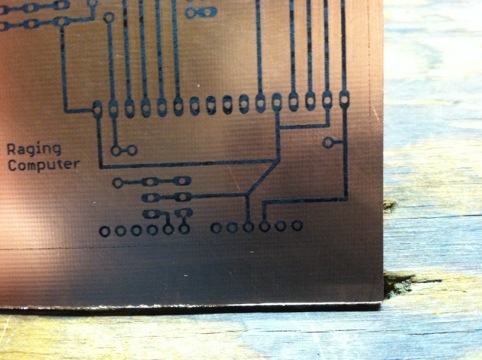

I had a slightly messed up print on toner transfer paper that i put on my test board. The lines are even sharper than with the parchment paper.


One thought on “Toner Transfer on the Cheap

  1. about how many passes with the scotch laminator, I just got one but im having issues with the toner cracking and pitting.
